There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
جزئیات محصول:
|
نوع میکسر: | روبان | حجم بشکه (L): | 20000 |
---|---|---|---|
مواد پردازش شده: | مواد شیمیایی، غذا، دارو | حداکثر حجم بارگیری (L): | 12000 L |
Max. حداکثر Loading Capacity ظرفیت بارگیری: | 10000 لیتر | وزن (کیلوگرم): | 3000 کیلوگرم |
مواد: | SUS304، SUS316، SUS304، SUS 316، فولاد کربنی | وضعیت: | جدید |
نوع محصول: | میکسر روبان | کاربرد: | پودر، فرآوری دارو |
قابلیت های اضافی: | مخلوط کردن مایع | ولتاژ: | سفارشی، سفارشی |
ابعاد (L*W*H): | اشاره | توان (کیلو وات): | 2.2 کیلو وات |
ضمانتنامه: | 1 سال | نکات کلیدی فروش: | خودکار |
صنایع قابل اجرا: | هتل ها، کارخانه تولیدی، کارخانه غذا و نوشیدنی، مزارع، رستوران، فروشگاه مواد غذایی، فروشگاه های مواد | مکان نمایشگاه: | هیچ یک |
نوع بازاریابی: | محصول داغ 2019 | گزارش تست ماشین آلات: | ارائه شده است |
بازرسی خروجی ویدیویی: | ارائه شده است | گارانتی قطعات اصلی: | 1 سال |
اجزای اصلی: | موتور | خدمات پس از فروش ارائه شده است: | مهندسین در دسترس برای خدمات ماشین آلات در خارج از کشور |
MOQ: | 1 مجموعه | استفاده: | مخلوط کردن پودر یا مخلوط کردن پودر با مایع |
توان (w): | 0.75KW ~ 45KW | ظرفیت: | بستگی دارد |
بندر: | بندر شانگهای |

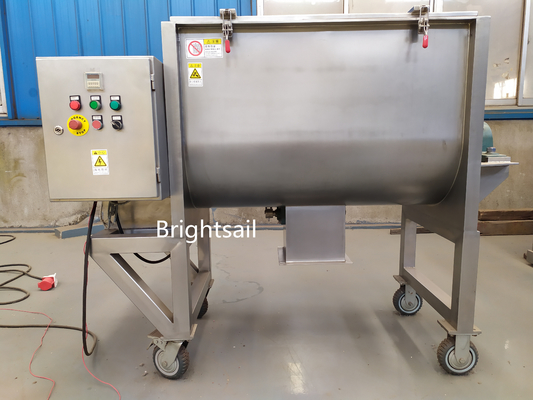

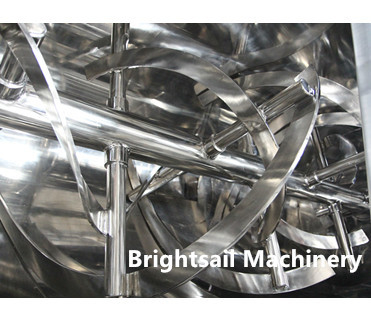

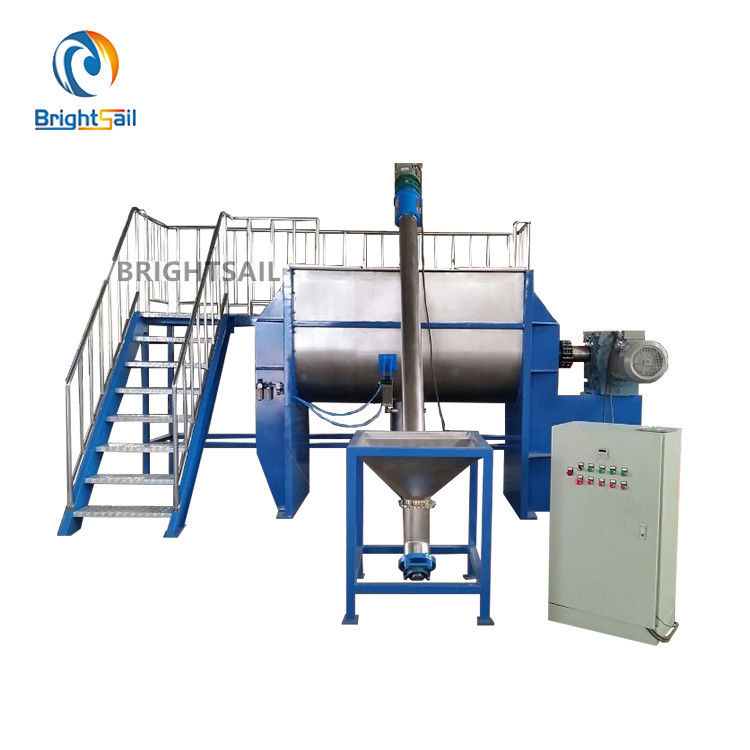

Horizontal ribbon mixer comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.
It has a very good effect for Horizontal Ribbon Mixer Medicinal Powder Mixing Machine
1) Simple structure in horizontal U shape ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ,bearings and operation parts.
3) hermetic seals are adopted on both sides of our ribbon mixer,

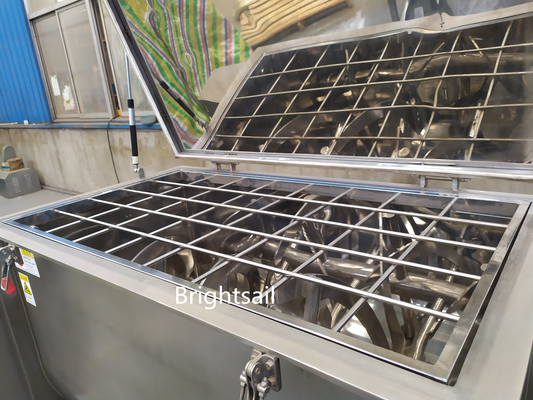

4) There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.

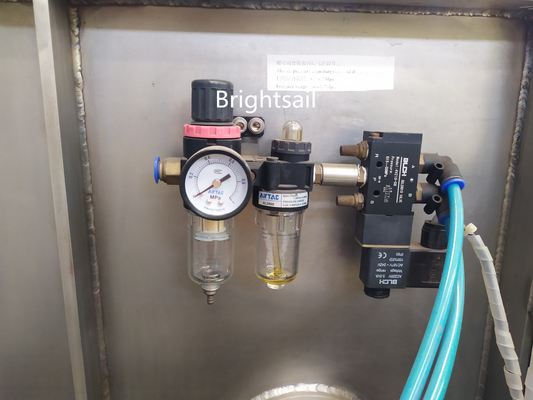

5) Pneumatic valve is adopted to discharge material
There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.

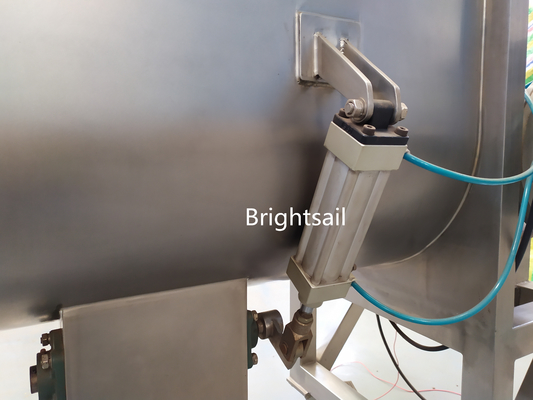

Pneumatic valve is adopted to discharge material
Model | Max work volume(L) | Rotate speed (rpm) | Overall size (L*W*H) (mm) | Weight(kg) |
BSR-300 | 180 | 66 | 1550(L)*812(W)*1015(H) | 780 |
BSR -500 | 300 | 66 | 1975(L)*1059(W)*1120(H) | 955 |
BSR-1000 | 600 | 41 | 2340(L)*1380(W)*1455(H) | 1400 |
BSR-2000 | 1200 | 33 | 2480(L)*1651(W)*1805(H) | 2500 |
BSR-3000 | 1800 | 33 | 2945(L)*1896(W)*1980(H) | 3300 |
BSR-4000 | 2400 | 29 | 3038(L)*1946(W)*2205(H) | 3600 |
BSR-5000 | 3000 | 29 | 3932(L)*2010(W)*2035(H) | 4620 |
BSR-6000 | 3600 | 26 | 3938(L)*1882(W)*2246(H) | 5300 |
BSR-8000 | 4800 | 26 | 3986(L)*2160(W)*2516(H) | 6800 |
BSR-10000 | 6000 | 19 | 4500(L)*2270(W)*2667(H) | 8900 |
* Inquiry and consulting support within 24 hours
* Sample testing support.
* View our Factory.
* Instructing how to install the machine, instructing how to use the machine.
* Engineers available to service machinery overseas.
